UPS-PC-1202AP

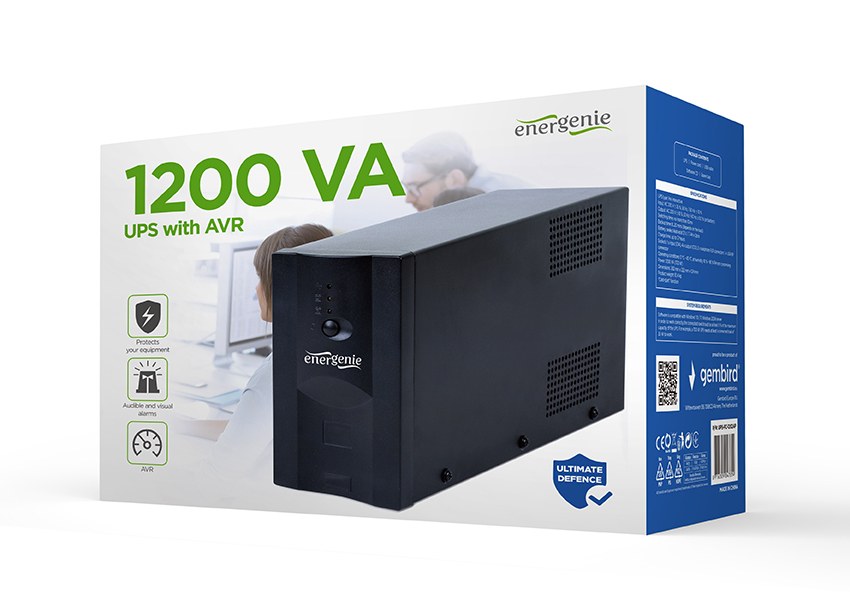

1200VA UPS with AVR, advanced

  • ULTIMATE DEFENCE
  • Provides backup power - prevents data loss
  • Protects your sensitive and valuable equipment
  • Compact and reliable - ideal for home and small office use

▲
  • UPS-PC-1202AP
  • UPS-PC-1202AP
  • UPS-PC-1202AP
  • UPS-PC-1202AP
  • UPS-PC-1202AP
▼
Thumbelina Zoom Image

  • Uninterruptable 1200 VA power supply for PC’s
  • Automatic output voltage regulation (AVR)
  • USB interface
  • LED status indication
  • Short circuit protection
  • Surge, spike and lightning protection
  • Audible and visual alarms
  • Overcharge and overdischarge protection
  • Fax/Modem/Telephone protection socket
  • Including Practical UPS Management software



UPS-PC-1202AP
Question UPS switches off automatically after a very short time, but the battery indicator still shows (almost) full battery.
Answer Every UPS has a certain maximum power output (W), but also a minimum required load. In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work. Otherwise it will shut itself down automatically as a safety measure to preserve the batteries. Also when the connected load is higher than the maximum capacity of the UPS, the device will shut down.
Specifications
UPS type: line interactive
Input: AC 162 - 295 V, 50 Hz / 60 Hz ± 10 %
Output: AC 188 - 254 V, 50 Hz / 60 Hz ± 0.5 % (on battery)
Waveform: sine wave (AC mains), simulated sine wave (battery)
Temperature compensation:  -20mV/1 °C (per cell)
Switching time: no more than 5 ms
Backup time: 2...20 mins (depends on the load)
Battery: sealed lead-acid 12V/7Ah x 2pcs
Charge time: up to 12 hours
Sockets: 1x input (C14), 4x output (C13 / Shuko - optional); 2x telephone RJ11 connectors; 1x USB-BF connector
Operating conditions: 0°C~40°C, at humidity 20~90 %RH non condensing
Power: 1200 VA (720 W)
Dimensions: 382 x 222 x 124 mm
Product weight: 10.4 kg
"Cold-start" function

System Requirements
Software is compatible with Windows 7, Windows 2008 server, Windows 8/10/11
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
Manuals
Helpdesk Email helpdesk@gembird.nl (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)
manual UPS-PC-652-850-1202AP Energenie User Manual (2424 kb)

Drivers
Helpdesk Email helpdesk@gembird.nl (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)
driver UPSmartV1.9 (12725 kb)
Package Contents
UPS
Power cord
USB cable
Software CD
Spare fuse

Packing Details
Q'ty in crtn, pcs2
Crtn volume, CBM0.0465
Crtn weight, kgs22.54
Individual package size LxWxH:390x185x295 mm
Carton size LxWxH:400x375x310 mm
Country of originCN
Barcode8716309047814
Customs code8504408590
Packagingcolor box
